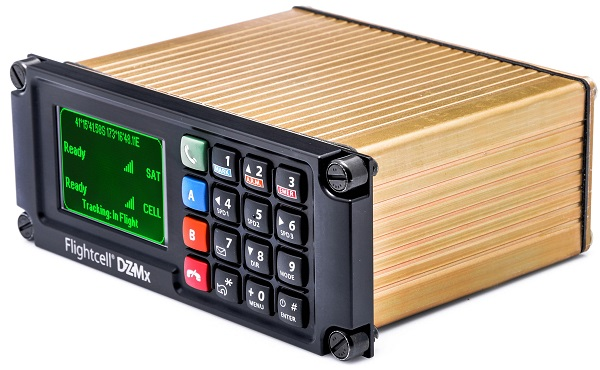

The Flightcell DZMx is the world’s only all-in-one satellite and cellular voice, data and tracking system for rotary and fixed-wing aircraft. All electronics are installed in one compact, panel-mounted control head – nothing in the avionics bay, and minimal wiring means substantial savings on installation costs. It is the world’s only all-in-one satellite and cellular phone system, providing crystal clear voice communications via Iridium satellite and cellular networks, so you’re always connected.
The DZMx is built to MILSPEC and DO160G standards, and designed to withstand extremes of temperature, vibration and impact. Housed in a super strong extruded alloy case, with minimal wiring, it’s fast and simple to install. Incredibly, the DZMx weighs only 1.4lbs (650g)!
| DZMx Technical Specifications | |
|---|---|
| Input Voltage: | 12 – 32VDC |
| Power Supply Current: | ~1A @ 28VDC |
| ICS to DZM Audio Input Levels: | 20mVrms to 1.15Vrms, adjustable 775mVRMS nominal |
| Input impedance: | 600Ω |
| Microphone bias voltage: | 12V via 2.2kΩ |
| DZM to ICS Audio Output levels: | Up to 5Vrms, adjustable 775mVRMS nominal |
| Output impedance: | 150Ω |
| Backlighting Control: | AC/DC, 0 - 32V User calibrated High/Low set-points |
| Backlight colour Green 520nm: | Designed for NVIS compliance. |
| GPS Antenna bias voltage: | 5V |
| Antenna current: | p to 100mA |
| Sensitivity: | -162dBm (with Flightcell Antenna) |
| Time to first fix: | 26s |
| Shell: | Aluminium 6061 |
| Mounting fasteners: | DZUS or M5 |
| Main connector: | 1 x D25 male plus 1 x D25 female or |
| 1 x D38999 male (military versions) | |
| Antenna connectors: | Transceivers TNC |
| GPS: BNC | |
| Faceplate width: | 146 mm x 158 (5.75" x 6.22") |
| Body width: | 126 mm x 126 mm (4.96" x 4.96") |
| Faceplate height: | 57 mm x 60 mm (2.24" x 2.36") |
| Body height: | 54 mm x 54 mm (2.13" x 4.33") |
| Depth (front to rear faces): | 110 mm x 110 mm (4.33" x 4.33") |
| Weight: | 580-720g (1.21-1.59 lbs) depending on configuration |
| RS232: | 3-wire serial port |
| RS-485/422: | 4-wire serial port |
| USB-Micro AB Connector: | OTG (On-The-Go) USB port |
| USB-via D25 or D38999: | DZMx is USB Host |
| 10/100 ethernet: | Ethernet port |
| General purpose inputs: | 5 (3 x digital, 2 x analogue) |
| General purpose outputs: | 2 outputs |
| Certification: | DO-160G sections 4-9, 15-21, 25. |
| Built to IP54 (Civ), IP65 (Mil) | |
| Operating temperature: | -40°C to 70°C |
| DZP_04-000: | DZMx Civil no Transceiver |
| DZP_04-100: | DZMx Civil with Satellite |
| DZP_04-300: | DZMx Civil with Satellite & 3G Cell |
| DZP_04-020: | DZMx Military, NVIS A, no transceiver |
| DZP_04-120: | DZMx Military, NVIS A, with Satellite |
| DZP_04-320: | DZMx Military, NVIS A, with Sat & 3G Cell |
Installation Determination for Major / Minor Alterations (FAA)
For determining whether an installation requires to have FAA Certification, Flightcell has prepared a questionnaire to help assess if an STC is needed. The file 'Major_Minor_Alteration_Determination_FAA' is attached.
